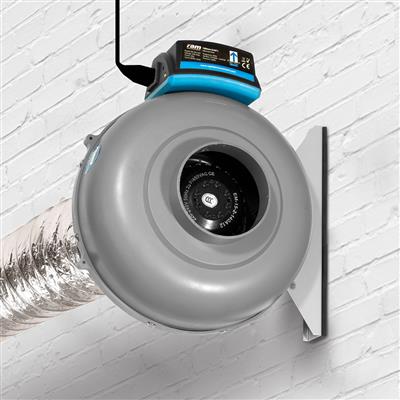

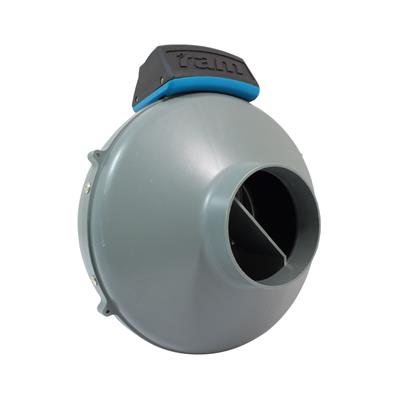

Ram Inline duct fan (With UK Power Lead)
Ram Inline duct fan (With UK Power Lead)
Couldn't load pickup availability
The RAM Inline Duct Fans are designed for high pressure but quiet air movement with the patented Fast-Flow™ airflow fin.
What is Fast-FlowTM?
Fast-FlowTM is an anti-turbulence fin. This patented technology slows down the air coming into the fan resulting in a smoother and more direct flow of air into the ducting.

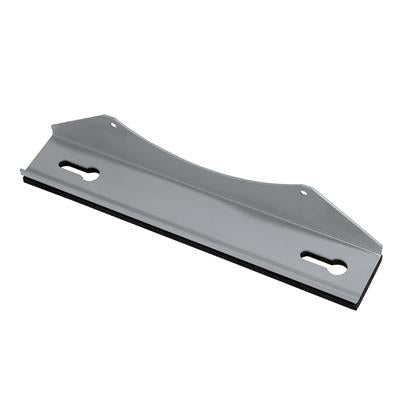

Supplied with a mounting bracket and fitted with an IEC Socket. Comes supplied with UK power lead (Not usually included)
| Size | Op. temp range | Protection class | Impeller | Power consumption | Current (A) | RPM | Airflow |
| 100mm | -20⁰C – 50⁰C | IP44 | PA66 | 69W | 0.32 | 2550 | 277m3/hr |
| 125mm | -20⁰C – 50⁰C | IP44 | PA66 | 74W | 0.34 | 2475 | 378m3/hr |
| 150mm | -20⁰C – 50⁰C | IP44 | PA66 | 96W | 0.44 | 2210 | 580m3/hr |
| 200mm | -20⁰C – 50⁰C | IP44 | PA66 | 166W | 0.77 | 2280 | 998m3/hr |
| 250mm | -20⁰C – 50⁰C | IP44 | PA66 | 174W | 0.8 | 2350 | 1088m3/hr |
